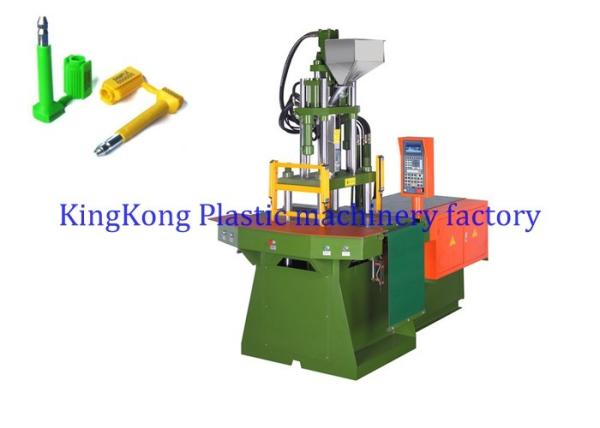

Container security seals injection molding machine , Cabinet seal injection molding machine
This is a Vertical 2 stations injection machine for Container seal molding, you can also use to produce eletricity connector part, cover, socker connector etc...after change the mold. And for the mold you can connect with water cooling system for better cooling for different product.
Feature:
- Mold stations: 2 PCS;
- Suitable input raw material: PVC/PP/PE/PET/Rubber;
- Injection screw diameter: 26-30mm for your option;
- Injection volume: Maximum 80 Grams;
- Main spare part brand are from TaiWan or Japan brand;
- Servomotor for your option to help you salve eletricity consumption;
| Raw material | PVC/PP/PE/Rubber/PET |
| Finished Product | outsole, slipper, T Strap / upper |
| Mold station | 2 PCS |
| Mold clamping force | 35 tons |
| Injection pressure | 1181 KG/㎡ |
| Screw Diameter | 26-30 mm |
| Max dimension mold | 500x350x180mm (LxWxH) |
| Max injection volume | 80 grams |
| Motor Power | 3.5kw |
| Total net Weight | 1.7 Tons |
| Machine dimension | 1.38 x1.05 x2.38 M
|
Within 25 days after confirm deposit;
As per request: Exwork, FOB, CIF for your option;
T/T 30% in advance, balance before shipment;
(We will send the ready machine photo and also testing video for your information)
- Engineer Oversea installation and aftersales service avaiable for you!
- What we can supply for the same:
All kinds of PVC,TPR,TR,TPU,EVA Mold for shoe injection machine, and all necessary machinery to set up the shoe line, like Plastic Mixer, crusher, drying hopper, Water cooling tower, sole drilling machine, flip flop attaching machine,etc....
Finished Output Sample:
